Perakitan Motor Travel 31N8-40050 31N8-40060 untuk Hyundai R305-7 R300LC-7 Crawler
| Nama merek | TCY |
|---|---|
| Nomor model | R305-7 R300LC-7 |
| Kuantitas min Order | 1 |
| Harga | 1000-3000 |
| Kemasan rincian | Kasus Kayu |
| Waktu pengiriman | 2-3/Negosiasi |
| Syarat-syarat pembayaran | T/T,Alipay,Wechat...dll., |
Detail produk
| Nomor bagian | 31N8-40050 31N8-40051 31N8-40051G 31N8-40052 31N8-40053 31N8-40054 31N8-40060 31N8-40061 31N8-40061G | Nama Bagian | Perakitan motor perjalanan |
|---|---|---|---|
| Melamar | R305-7 R300LC-7 | Ukuran kotak kayu | 63*63*78 |
| Berat | 410kg | Kondisi | Baru |
| MOQ | 1 | Aplikasi | Drive final Excavator Hyundai |
Deskripsi Produk

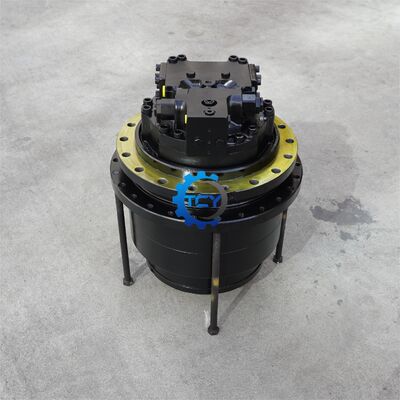

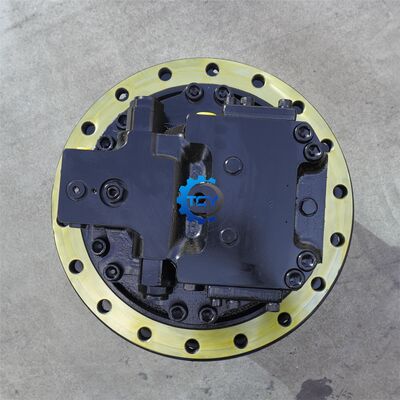

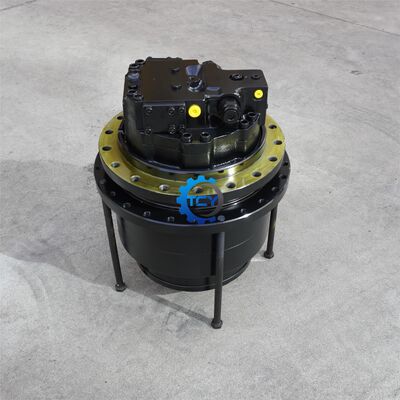

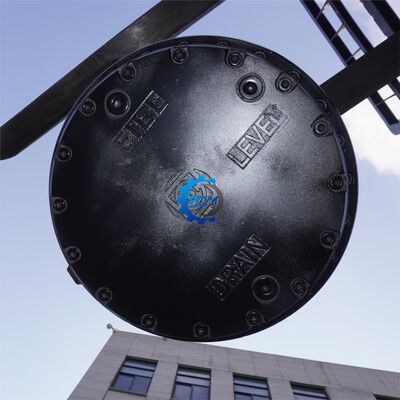

Rakitan Motor Perjalanan 31N8-40050 31N8-40060 untuk Hyundai R305-7 R300LC-7 Crawler
Model: R305-7 R300LC-7 |
Nama bagian: Motor Perjalanan dengan kotak roda gigi |
NO. Bagian:31N8-40050 31N8-40051 31N8-40051G 31N8-40052 31N8-40053 31N8-40054 31N8-40060 31N8-40061 31N8-40061G 31N8-40062 31N8-40063 |
MOQ:1PCS |
Pengepakan:Kotak kayu |
Tempat Asal:Buatan China |
Layanan purna jual disediakan:Dukungan online |
Berlaku Untuk:Perangkat Akhir Excavator |
Waktu Pengiriman:1-3 hari Atau negosiasi |
Catatan: Model lain dapat dikonsultasikan secara online |
Produk
| Pos. | Par No | Jumlah | Nama bagian |
| * | 31N8-40050 | [1] | MOTOR TRACK |
| * | 31N8-40051 | [1] | MOTOR TRACK |
| * | 31N8-40051G | [1] | MOTOR TRACK |
| * | 31N8-40052 | [1] | MOTOR TRACK |
| * | 31N8-40053 | [1] | MOTOR TRACK |
| * | 31N8-40054 | [1] | MOTOR TRACK |
| *-1 | 31N8-40060 | [1] | UNIT MOTOR TRACK |
| *-1 | 31N8-40061 | [1] | UNIT MOTOR TRACK |
| *-1 | 31N8-40061G | [1] | UNIT MOTOR TRACK |
| *-1 | 31N8-40062 | [1] | UNIT MOTOR TRACK |
| *-1 | 31N8-40063 | [1] | UNIT MOTOR TRACK |
| 1 | XKAY-00197 | [1] | CASING-SHAFT |
| 1 | XKAY-00962 | [1] | CASING-SHAFT |
| 1 | XKAY-02052 | [1] | CASING-SHAFT |
| 2 | XKAY-01415 | [12] | PLUG |
| 3 | XKAY-00199 | [2] | SCREW-ORIFICE |
| 4 | XKAY-00199 | [1] | SCREW-ORIFICE |
| 5 | XKAY-00201 | [2] | PIN-SUPPORT |
| 6 | XKAY-00202 | [4] | PIN-BRAKE |
| 7 | XKAY-00203 | [1] | STOPPER(S) |
| 8 | XKAY-00204 | [4] | O-RING |
| 9 | XKAY-00205 | [3] | RING-BACK UP |
| 10 | XKAY-00206 | [1] | PISTON-SWASH |
| 11 | XKAY-00207 | [1] | SHAFT |
| 12 | XKAY-00208 | [1] | BEARING-BEARING |
| 13 | XKAY-00209 | [1] | RING-ROLLER |
| 14 | XKAY-00210 | [1] | RING-STOP |
| * | XKAY-00211 | [1] | SUPPORT KIT |
| * | XKAY-00212 | [1] | SUPPORT |
| N15 | XKAY-00213 | [1] | PLATE-SWASH |
| N16 | XKAY-00214 | [1] | PISTON-SWASH |
| 17 | XKAY-00215 | [1] | STOPPER(L) |
| 18 | XKAY-00216 | [1] | O-RING |
| 19 | XKAY-00217 | [2] | RING-BACK UP |
| 20 | XKAY-00218 | [1] | ROTARY KIT |
| * | XKAY-01510 | [1] | ROTARY KIT |
| * | XKAY-00218 | [1] | ROTARY KIT |
| *-1 | XKAY-00219 | [1] | CYLINDER BLOCK KIT |
| *-1 | XKAY-01509 | [1] | CYLINDER BLOCK KIT |
| *-1 | XKAY-00219 | [1] | CYLINDER BLOCK KIT |
| N21 | XKAY-00220 | [1] | BLOCK-CYLINDER |
| N21 | XKAY-01504 | [1] | BLOCK-CYLINDER |
| N21 | XKAY-00220 | [1] | BLOCK-CYLINDER |
| 22 | XKAY-00221 | [9] | SPRING-CYLINDER |
| 23 | XKAY-00222 | [1] | SPACER |
| 67 | XKAY-00972 | [1] | PLATE-VALVE |
| *-2 | XKAY-01505 | [1] | RETAINER KIT |
| 24 | XKAY-00223 | [1] | GUIDE-BALL |
| 25 | XKAY-00225 | [1] | SET-PLATE |
| *-3 | XKAY-00226 | [1] | PISTON KIT |
| N26 | XKAY-00227 | [9] | PISTON & SHOE ASSY |
| 27 | XKAY-00228 | [2] | PLATE-FRICTION |
| 28 | XKAY-00229 | [1] | PLATE-SEPARATOR |
| 29 | XKAY-00973 | [1] | BRAKE-PISTON |
| 30 | XKAY-00231 | [1] | RING-PISTON 252 |
| 31 | XKAY-00232 | [1] | RING-PISTON 278 |
| 32 | XKAY-00233 | [10] | SPRING-BRAKE |
| 33 | XKAY-01416 | [1] | CASING-VALVE |
| 33 | XKAY-01506 | [1] | CASING-VALVE |
| 34 | XKAY-00235 | [1] | BEARING-NEEDLE |
| 35 | XKAY-00236 | [1] | O-RING |
| 36 | XKAY-00237 | [2] | PIN-VALVE PLATE |
| * | XKAY-00238 | [1] | SPOOL KIT-C/BLC VALVE |
| 37 | XKAY-00239 | [1] | SPOOL-C/BLC VALVE |
| 38 | XKAY-00240 | [2] | SCREW-ORIFICE |
| 39 | XKAY-00241 | [2] | DAMPING CHECK ASY |
| 40 | XKAY-00242 | [2] | SPRING-C/BLC VALVE |
| 41 | XKAY-00243 | [2] | O-RING |
| 42 | XKAY-00244 | [2] | PLUNGER-C/BLC VALVE |
| 43 | XKAY-00245 | [2] | SPRING-CHECK |
| 44 | XKAY-00246 | [2] | STOPPER-CHECK |
| 45 | XKAY-00247 | [4] | O-RING |
| 46 | XKAY-00248 | [4] | RING-BACK UP |
| 47 | XKAY-00249 | [1] | CAP-C/BLC VALVE(R) |
| 48 | XKAY-00250 | [1] | CAP-C/BLC VALVE(L) |
| 49 | XKAY-00136 | [8] | BOLT-SOCKET |
| 50 | XKAY-00251 | [4] | BOLT-SOCKET |
| 51 | XKAY-00252 | [2] | SEAT |
| 52 | XKAY-00253 | [2] | BALL-STEEL |
| 53 | XKAY-00254 | [2] | STOPPER |
| 54 | XKAY-00255 | [1] | PLUG-HP |
| 55 | XKAY-00256 | [1] | O-RING |
| 56 | XKAY-00257 | [2] | PLUG-HP |
| 57 | XKAY-00258 | [2] | VALVE ASSY-RELIEF |
| 58 | XKAY-00259 | [2] | O-RING |
| 59 | XKAY-00260 | [2] | RING-BACK UP |
| 60 | XKAY-00261 | [1] | ROD-SWASH |
| 61 | XKAY-00262 | [1] | O-RING |
| 62 | XKAY-00263 | [1] | SCREW-LOCK |
| 63 | XKAY-00264 | [2] | NUT-HEX |
| 64 | XKAY-00265 | [1] | SPOOL-SWASH |
| 65 | XKAY-00266 | [1] | PLUG |
| 66 | XKAY-00267 | [1] | O-RING |
| 68 | XKAY-00269 | [1] | SPRING-SWASH |
| 69 | XKAY-00270 | [1] | SPRING-SWASH |
| 70 | XKAY-00271 | [3] | BOLT-HEX |
| 71 | XKAY-00272 | [4] | NUT-HEX |
| 72 | XKAY-00273 | [1] | BOLT-SOCKET |
| 73 | XKAY-00274 | [1] | SCREW-LOCK |
| 74 | XKAY-00275 | [1] | SEAL-OIL |
| K | XKAY-00278 | [1] | SEAL KIT |
Pameran
Pengiriman
FAQ
T: Apa kebijakan sampel Anda?
J:Kami dapat menyediakan sampel jika kami memiliki suku cadang yang siap pakai, tetapi pelanggan harus membayar biaya sampel dan biaya kurir.
T: Apa produk utama Anda?
J:Kami fokus pada suku cadang untuk sistem hidrolik excavator, seperti motor perjalanan, motor ayun, kotak roda gigi perjalanan, kotak roda gigi ayun, bagian roda gigi, pompa hidrolik.
Jika Anda membutuhkan aksesori excavator lainnya, kami juga dapat menyediakan sesuai dengan Anda.
T: Berapa lama masa garansi produk?
J:Waktu garansi adalah 6 bulan, tergantung pada situasi proyek; kami tidak memberikan waktu garansi untuk produk asli dan bekas.
T: Bagaimana cara memesan?
J:Anda perlu memberi tahu kami model dan kuantitas yang Anda minati, dan kemudian kami akan mengeluarkan faktur proforma untuk Anda. Barang akan disiapkan setelah menerima pembayaran. Waktu persiapan tergantung pada isi pesanan.
T: Bagaimana cara membayar?
J:Anda dapat membayar melalui T/T, XT, wechat, jaminan perdagangan alipay atau negosiasi pembayaran.
